Smart Handle Lock

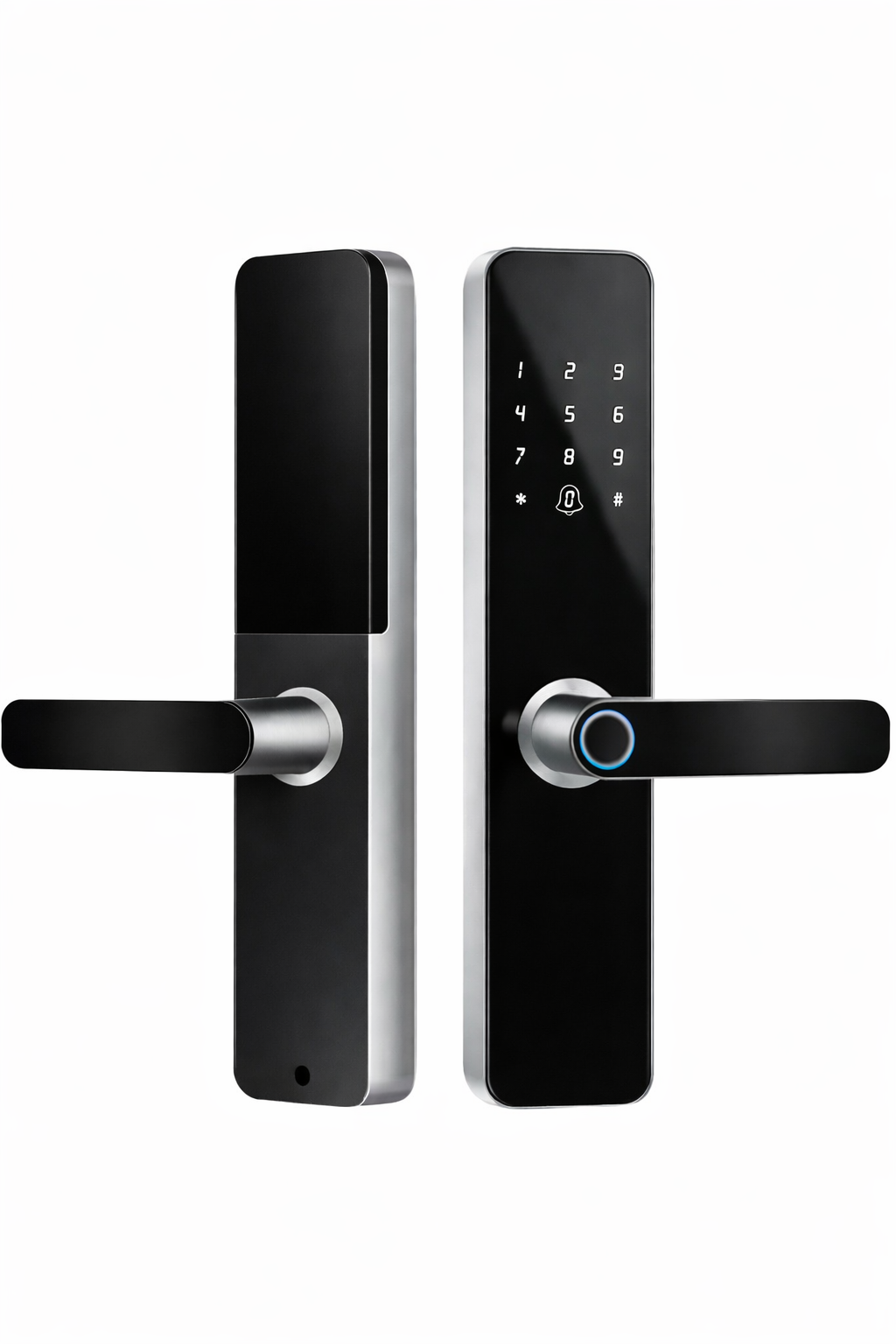

F7 Smart Handle Lock

Sleek smart handle lock with touch keypad and modern design. Supports both TTLOCK and TUYA intelligent systems for residential and commercial applications.

Select Style

Select Color

Select System Version

Languages

Chinese, English

Network

Bluetooth BLE (optional: gateway, NB-IoT, WiFi)

Unlock Methods

Fingerprint

Password

IC Card

Mechanical Key

Time-PIN

TTlock App

Send Inquiry

Technical Specifications

Dimensions

281.5mm × 65.5mm × 22mm

Power Supply

4x 1.5V AA Alkaline Batteries

Material

Aluminum Alloy Integrated Molding + Tempered Glass

Working Temperature

-20°C to +70°C

Bluetooth

Bluetooth BLE

WiFi

Optional (via gateway)

Biometric Capacity

Fingerprint Capacity120 fingerprints

Palm CapacityN/A

Face CapacityN/A

IC Card Capacity1000 IC cards (MIFARE M1)

Password Capacity150 custom + unlimited temporary

FAR<0.001% (FAR)

Electrical Specifications

Standby Current≤50μA

Working Current200mA

Voltage Range4.5-9V

Low Battery WarningBelow 4.8V

Battery LifeApproximately 12 months

Emergency PowerType-C USB

Waterproof Rating

IP RatingIP64

Triple waterproof protection: Air-tight seal, fingerprint sensor waterproof, and structural waterproof design

Packaging Information

Box Size565×405×320mm

Color Box Size19.2×11×29.5cm

Quantity per Carton10 PCS per carton

Gross Weight16kg

Single Unit Weight1.35kg (single unit), 16kg (whole box)

Certifications

CERoHS

Application Scenarios

Residential homes

Apartments

Hotels

Office buildings

Short-term rentals

Commercial spaces

ODM/OEM Customization Services

We provide comprehensive customization services including logo engraving, packaging design, color customization, software UI branding, and language customization.

Minimum Order Quantity (MOQ): 10+ sets for OEM/ODM customization

Low MOQ available for trial orders. Volume pricing and custom requirements welcome.
