Waterproof Handle Lock

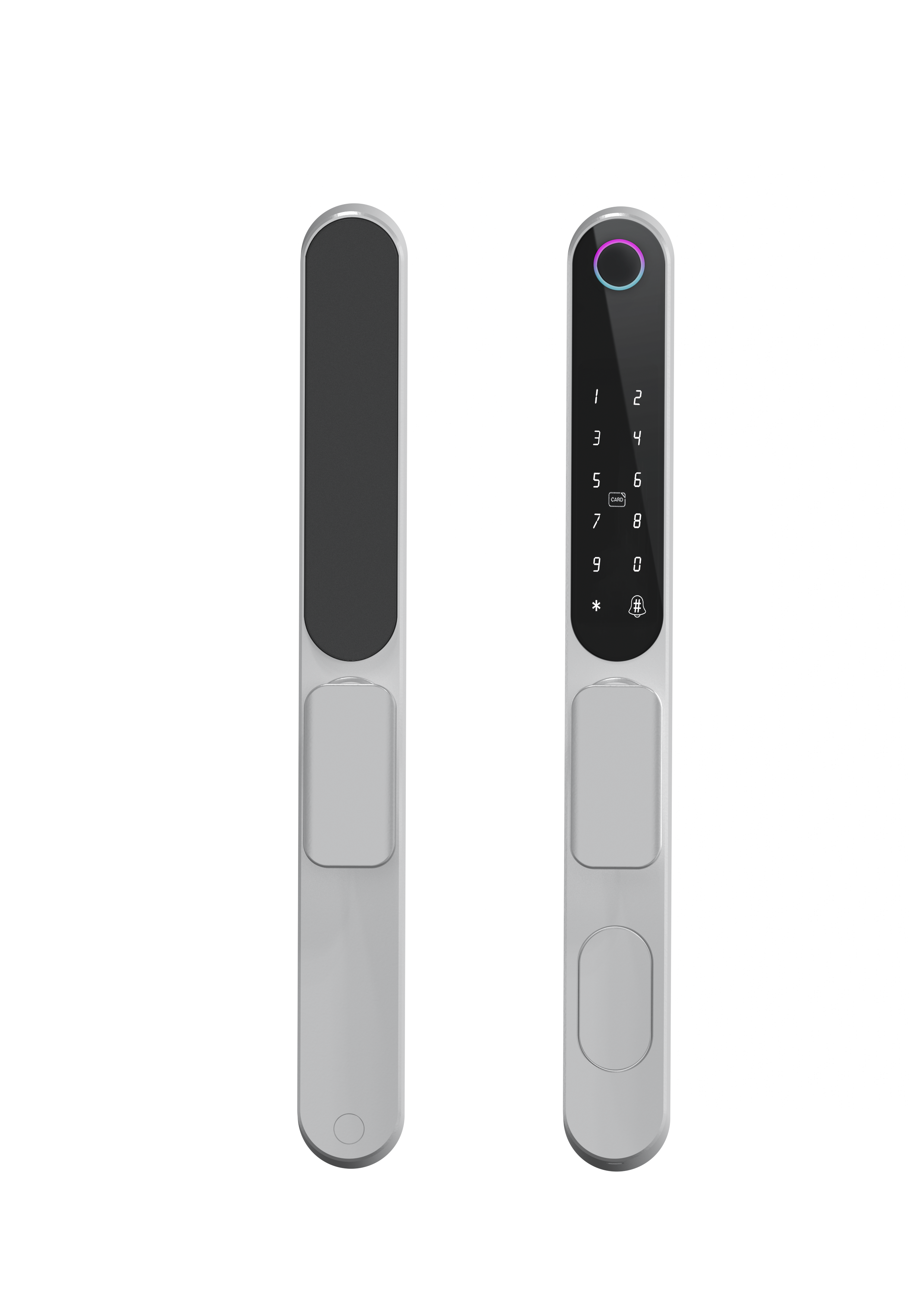

F9SE Broken Bridge Aluminum Intelligent Lock

Advanced waterproof smart handle lock with broken bridge aluminum design. Supports both TTLOCK and TUYA intelligent systems with comprehensive language support for global markets.

Select Style

Select Color

Select System Version

Languages

Chinese, English

Network

Bluetooth (optional: gateway, NB-IoT, WiFi)

Unlock Methods

Fingerprint

Password

IC Card

Mechanical Key

Time-PIN

TTlock App

Send Inquiry

Technical Specifications

Dimensions

314mm × 35mm × 21mm

Power Supply

4x 1.5V AA Alkaline Batteries

Material

Aluminum Alloy Integrated Molding + Glass Panel

Working Temperature

-25°C to +70°C

Bluetooth

WiFi

Optional (via gateway)

Biometric Capacity

Fingerprint Capacity200 fingerprints

Palm CapacityN/A

Face CapacityN/A

IC Card Capacity200 IC cards

Password Capacity24 digits (virtual password + actual password)

FAR≤0.001%

Electrical Specifications

Standby Current≤50μA

Working Current250mA

Voltage Range4.5-9V

Low Battery WarningBelow 4.8V

Battery LifeApproximately 12 months

Emergency PowerType-C USB

Waterproof Rating

IP RatingIP65

Triple waterproof protection: Air-tight seal, fingerprint sensor waterproof, and structural waterproof design

Packaging Information

Box Size500×400×290mm

Color Box Size19.2×9.7×27.6cm

Quantity per Carton10 PCS per carton

Gross Weight16.5kg

Single Unit Weight1.34kg (single unit), 16.5kg (whole box)

Certifications

CEFCCRoHS

Application Scenarios

Public rental housing

Apartments

Private rental housing

Hotel management

Office buildings

Commercial spaces

ODM/OEM Customization Services

We provide comprehensive customization services including logo engraving, packaging design, color customization, software UI branding, and language customization.

Minimum Order Quantity (MOQ): 10+ sets for OEM/ODM customization

Low MOQ available for trial orders. Volume pricing and custom requirements welcome.

Discuss Your Requirements
