Deadbolt Lock

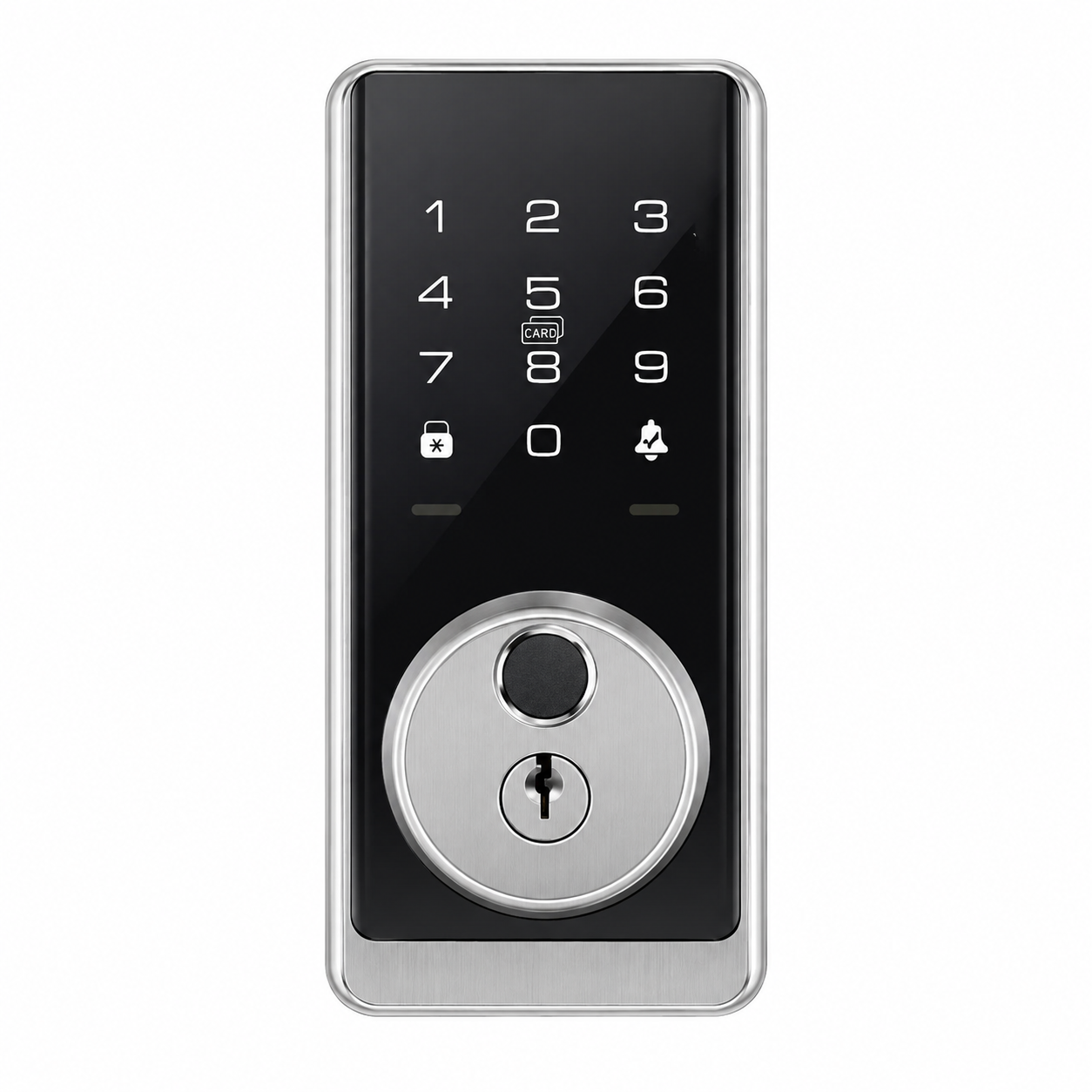

T3 Smart Touch Keypad Deadbolt Lock with TUYA System

Smart deadbolt lock with 2.5D curved touch keypad, featuring aluminum alloy front panel, TUYA system integration, anti-prying alarm, and multiple unlocking methods for residential and commercial applications.

Select Color

Select System Version

Languages

Chinese, English

Network

Bluetooth BLE / WiFi (Optional)

Unlock Methods

Fingerprint

Password

IC Card

Mechanical Key

Tuya Smart App

Send Inquiry

Technical Specifications

Dimensions

Front: 77×26.5×137mm, Rear: 73×37.2×149.6mm

Power Supply

8×AA (LR6) Alkaline Batteries, DC 6V

Material

Aluminum alloy (front) + ABS (rear), fire-resistant

Working Temperature

-20°C to +60°C

Bluetooth

Bluetooth BLE (TX version)

WiFi

Optional (WiFi version)

Biometric Capacity

Fingerprint Capacity100 fingerprints

Palm CapacityN/A

Face CapacityN/A

IC Card Capacity100 IC cards

Password Capacity200 passwords

FAR<0.001% (FAR)

Electrical Specifications

Standby Current80-110μA

Working Current≥120mA

Voltage Range6V (8×AA)

Low Battery WarningLow battery alert

Battery LifeApproximately 12 months

Emergency PowerType-C (5V2A)

Waterproof Rating

IP RatingIPX4

Triple waterproof protection: Air-tight seal, fingerprint sensor waterproof, and structural waterproof design

Packaging Information

Box Size460(L)×390(W)×290(H)mm

Color Box SizeCustomizable

Quantity per Carton20 PCS per carton

Gross Weight19 KG per box

Single Unit WeightTBD

Certifications

CEFCCRoHS

Application Scenarios

Residential homes

Apartments

Office buildings

Short-term rentals

Commercial spaces

ODM/OEM Customization Services

We provide comprehensive customization services including logo engraving, packaging design, color customization, software UI branding, and language customization.

Minimum Order Quantity (MOQ): 10+ sets for OEM/ODM customization

Low MOQ available for trial orders. Volume pricing and custom requirements welcome.
